Design

    Our in-house design, tooling and custom molding services add value in a variety of dimensions. Under one roof, we have experts in 2D and 3D Design for mold and development that can provide assistance to your next program. From concept through tooling to actual injection molding of the finished part, we can ensure the fastest and most cost-effective route for you to market.

     KYH Mould adopt for international advanced system-CAD/CAM/CAE in mould design and processing . We use professional software to deal with the 2D drawing in DXF, DWG, and 3D data in PRT, SAT, IGES, STEP format etc. Our professional designers work in team generating complex mold designs directly in 3D solid assembly. Also we could provide the Mold Flow to you if it's required

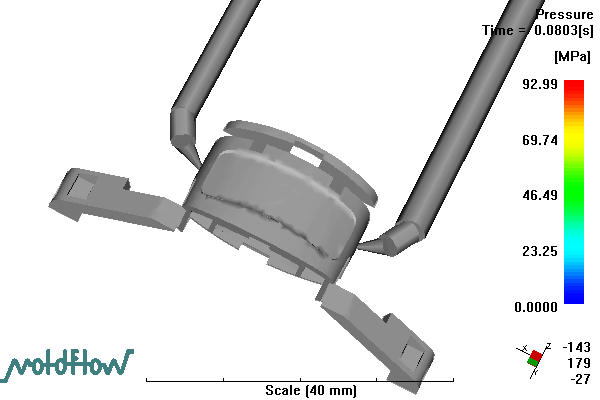

  3D designing for mould   2D design for mould   Mould flow analysis
Click here

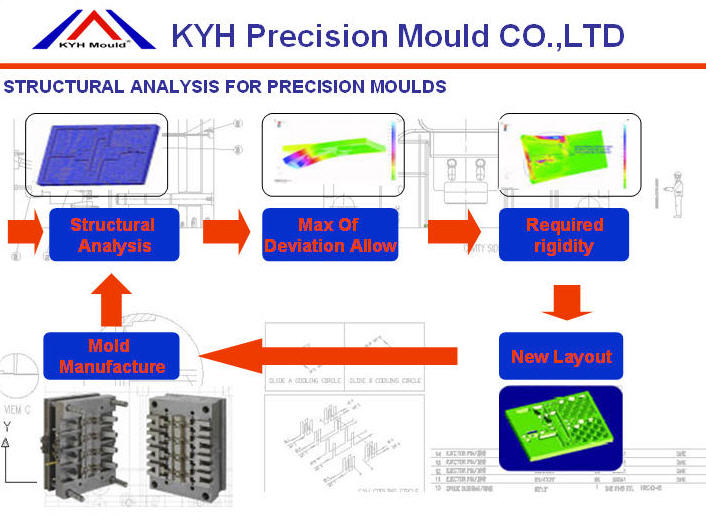

KYH Precision mould also may cooperate with customers in co-design also, thanks to a continuous R & D activity together with Engineering Professionals (for structural check) and with Manufacturers of plastic row material (for the investigation on the appropriate components), in order to support its customers in the design and application of the plastic parts, and advise on the most appropriate plastic or thermosetting material to be used for specific applications

Our working software as below:
• AutoCAD 2004
• Unigraphics CAD/CAM
• MoldFlow
• Pro/Engineer 2008
• SolidWorks 2008
